Votatu PMD504-SR 3MOA Micro Red Dot Sight Compatible with RMR Footprint
Frequently Bought Together
Description
FEATURES

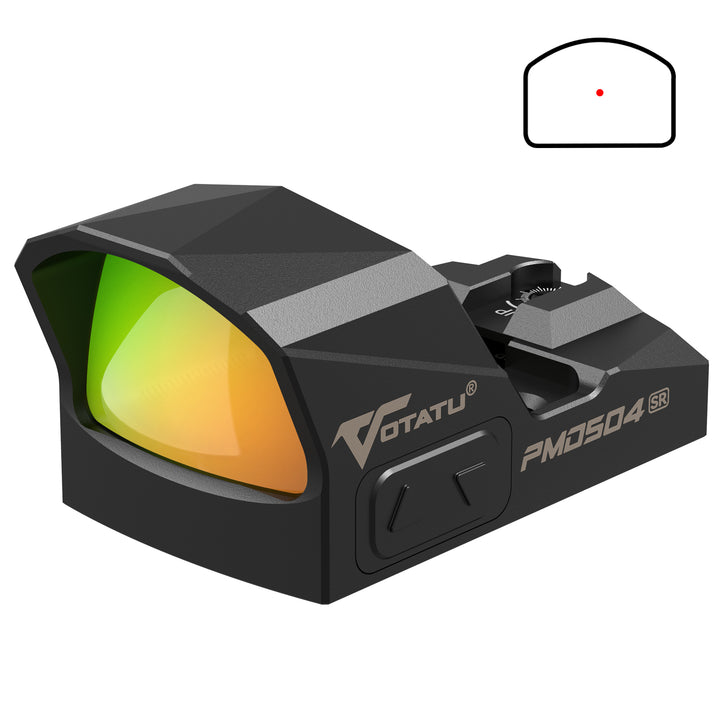

- 3MOA Micro Red Dot: The VOTATU PMD504-SR is a open reflex sight for RMR footprint cut pistols and picatinny rail mount . Featuring a Red 3 MOA aiming dot with a 24mm window for quick acquisition.
- 10 Illumination Settings: 10 bright settings, fully multi-coated lens that increase light transmission and clarity in any environment.

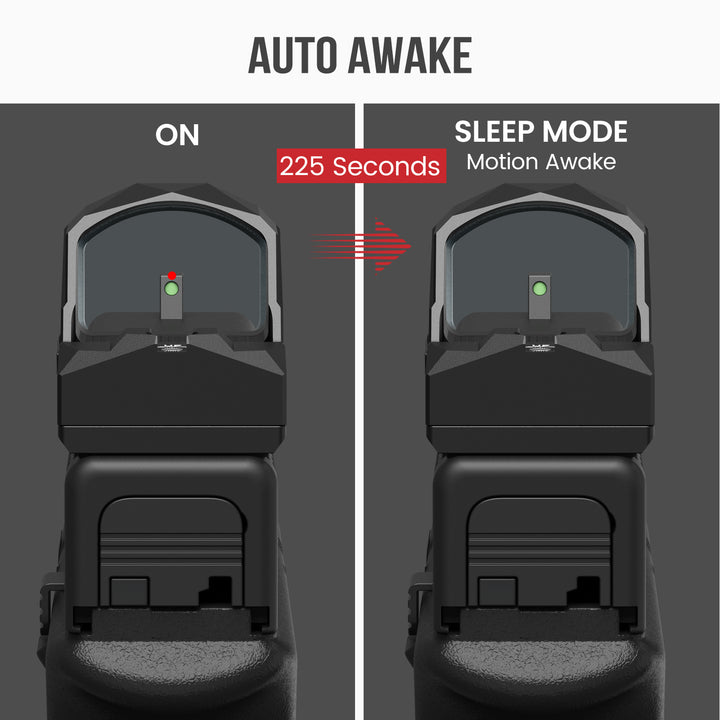

- Shake Awake : After about 225 seconds without sensing any motion, the sight will enter into sleep mode. Even the slightest movement will wake it up to the previous brightness setting.

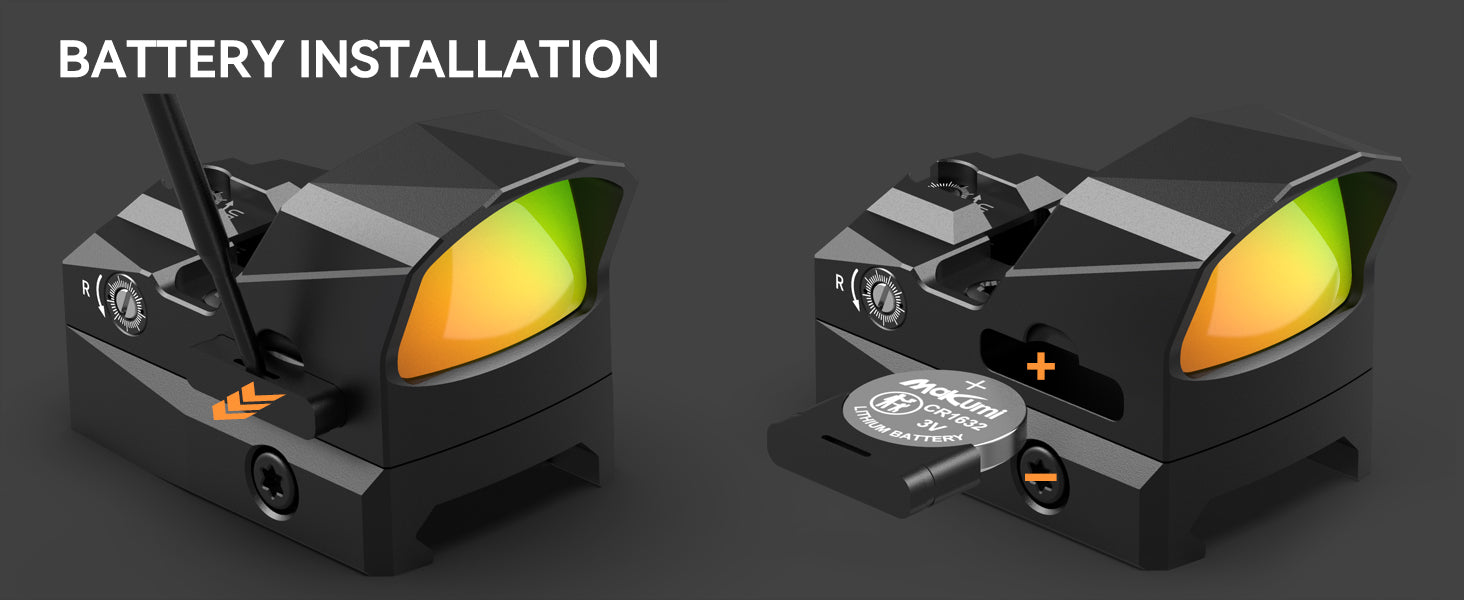

- Convenient Tray Battery Compartment：The readily available CR1632 battery is side-loading, allowing for quick battery replacement without having to remove the sight from the firearm. No more Re-zeroing.
- Built To Last : This Red Dot Sight housed in durable yet lightweight aircraft-grade aluminum for use in any environment. IPX7 waterproof, fogproof and shockproof construction.
-
IMPORTANT NOTES：The PMD504 is compatible with RMR footprint , please make sure you have the RMR cut slides, otherwise, you may have to find the correct adapter plate to fit this optic.
OPTICAL SPECS
| Reticle | 3MOA Dot |
| Reticle Color | Red |
| Parallax Range | ≤2moa |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 8 DL & 2 NV |
PHYSICAL SPECS

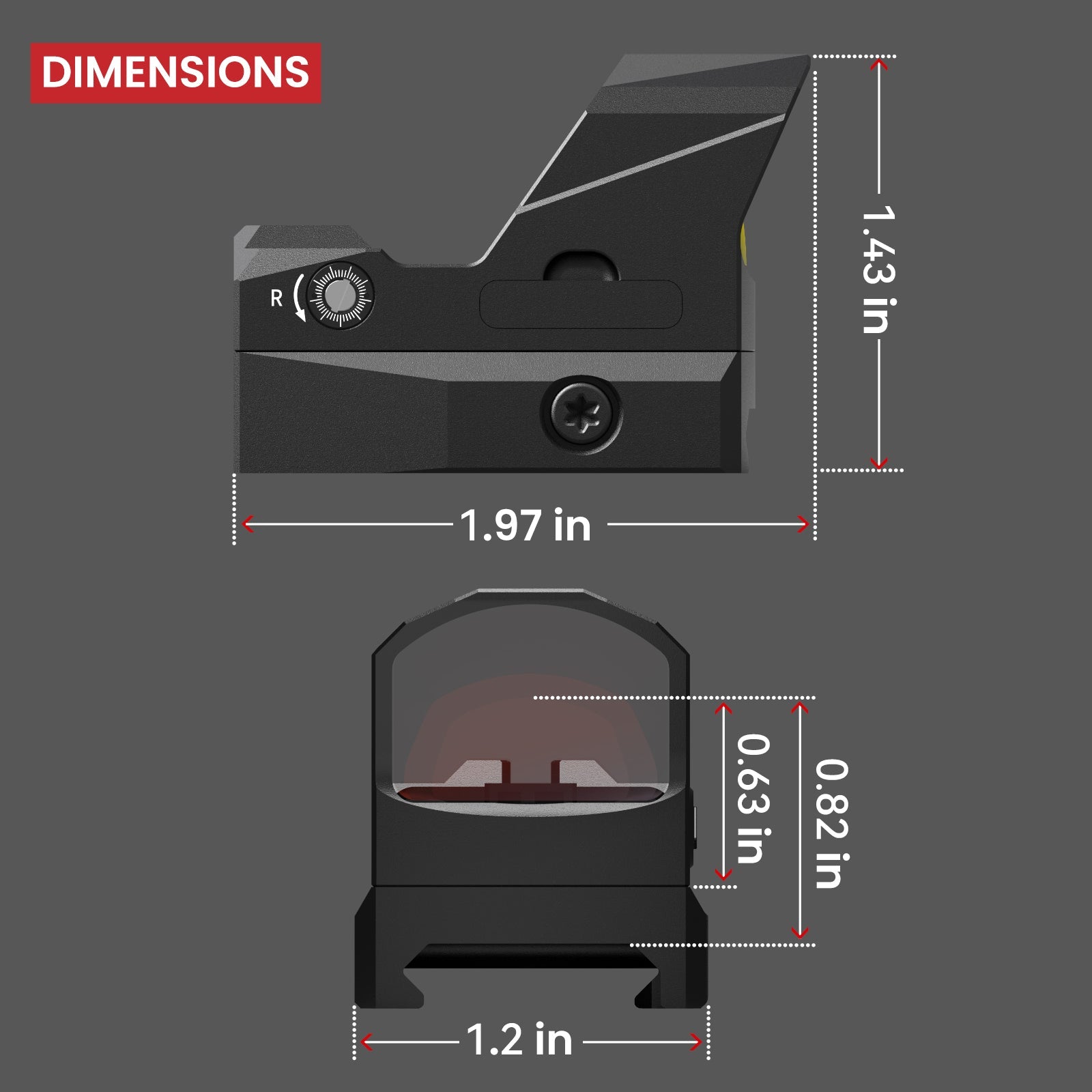

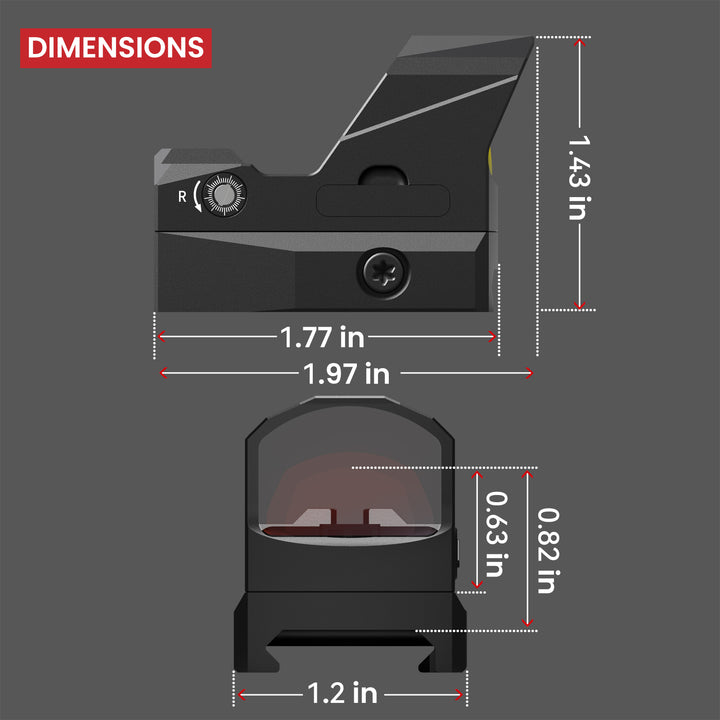

| Window Size | 0.83x0.65in (21x16.4mm) |
| Dimension (in) |
1.97x1.2x1.43inch (with Mount) 1.97x1.1x0.98inch (without Mount) |
| Weight | 61g/2.15oz(with Mount) 35g/1.23oz (without Mount) |
MECHANICAL SPECS
| Housing Material | 6061 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA/Click @ 100yds |
| W&E Travel Range |
±45 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | 1 Meter/ IPX7 |
| Vibration | 1500G |
