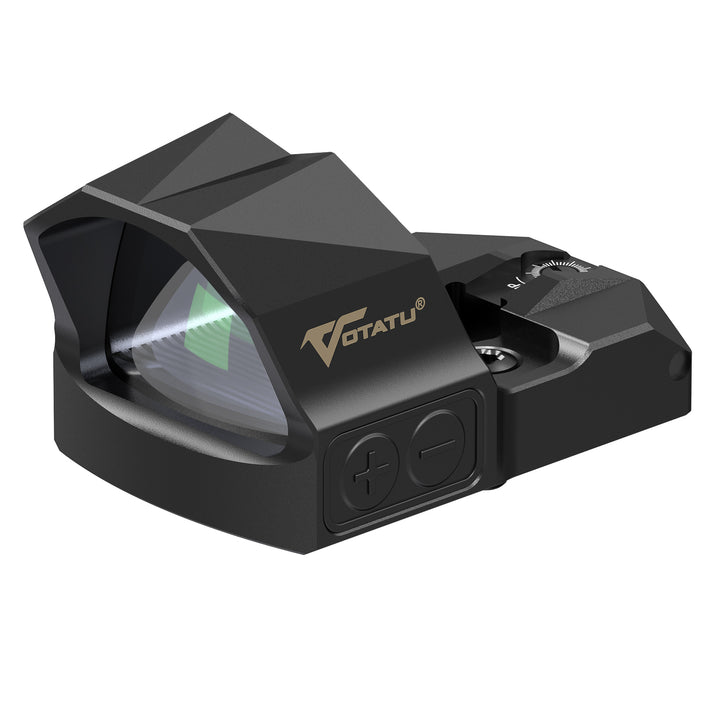

VOTATU PMD506-G Multiple Reticle Green Dot Sight for Doctor Footprint, Shake Awake 2 MOA Dot 64 MOA Circle
FEATURES Multiple Reticle System: PMD506-G GREEN dot sight featuring three reticle options ( the classic 2 MOA dot, the 64 MOA circle and their combination circle-dot reticle ) that delivers...
Frequently Bought Together
Description
FEATURES

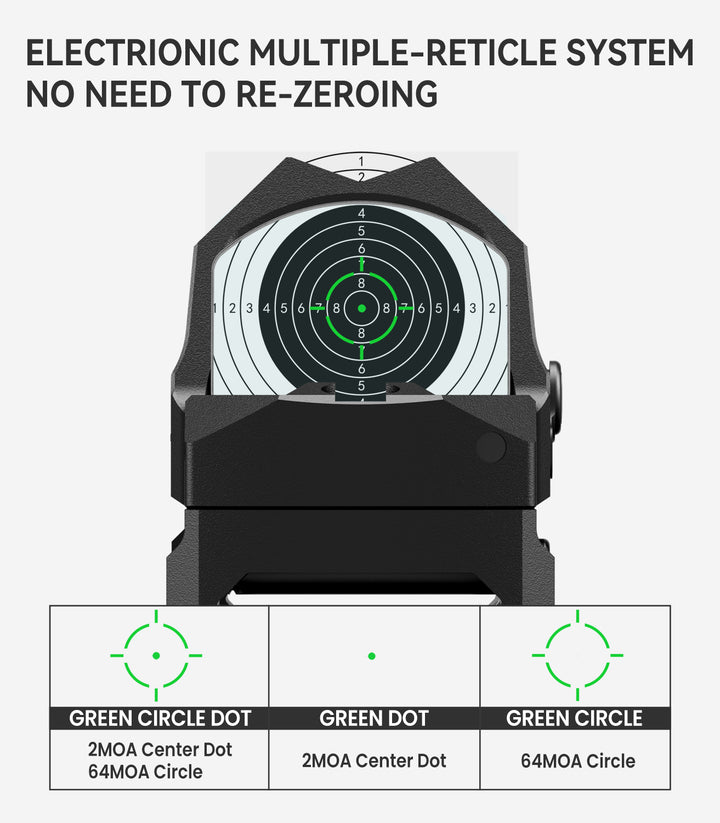

- Multiple Reticle System: PMD506-G GREEN dot sight featuring three reticle options ( the classic 2 MOA dot, the 64 MOA circle and their combination circle-dot reticle ) that delivers rapid target acquisition and accurate aim for any situation.
- 10 Illumination Settings: The PMD506 operate in all light levels with eight illumination settings for daylight and two for NV. Fully multi-coated lens that increase light transmission and clarity in any environment.

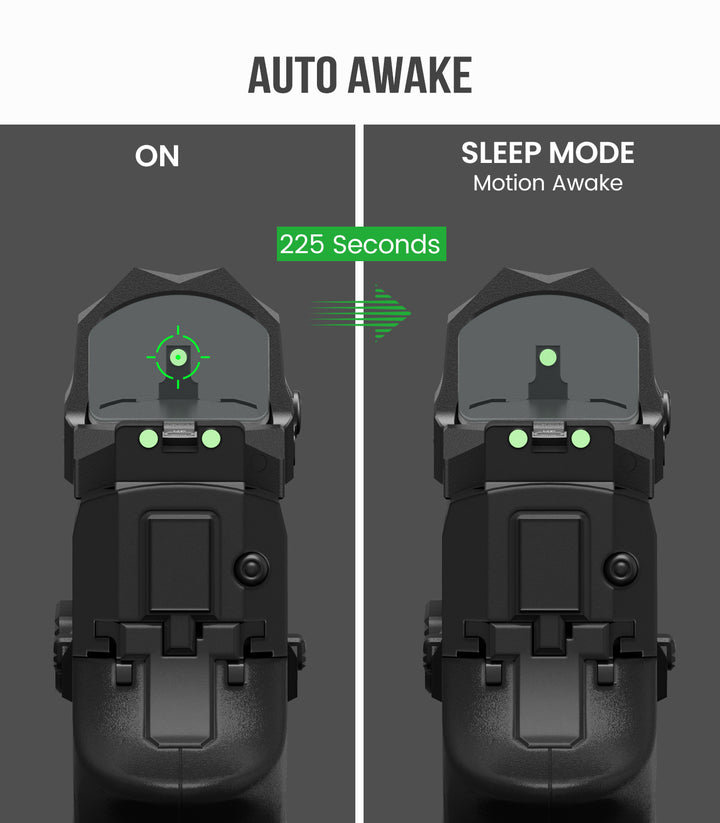

- Shake Awake : After about 225 seconds without sensing any motion, the sight will enter into sleep mode. Even the slightest movement will wake it up to the previous brightness setting.
- Convenient Tray Battery Compartment：The readily available CR1632 battery is side-loading, allowing for quick battery replacement without having to remove the sight from the firearm. No more Re-zeroing.
- Built To Last : This Micro Green Dot Sight housed in durable yet lightweight aircraft-grade aluminum for use in any environment. IPX7 waterproof, fogproof and shockproof construction.
- Fits pistols with doctor cut footprint or picatinny rail (picatinny mount included), If you do not know what slide cut/mounting plate your pistol has, please check pistol manual or contact the manufacturer. **The PMD506-G does NOT fit RMR, RMS/RMSc type footprints.
-
Any mount that is compatible with the Vortex Viper/Venom, Burris Fastfire 3 and 4 red dots will work with PMD506-G as they share the same footprint.
OPTICAL SPECS
| Reticle | 2 MOA Dot and 64 MOA Circle, 2 MOA Dot Only, 64 Circle Only |
| Reticle Color | Green |
| Parallax Range | ≤2moa |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 8 DL & 2 NV |

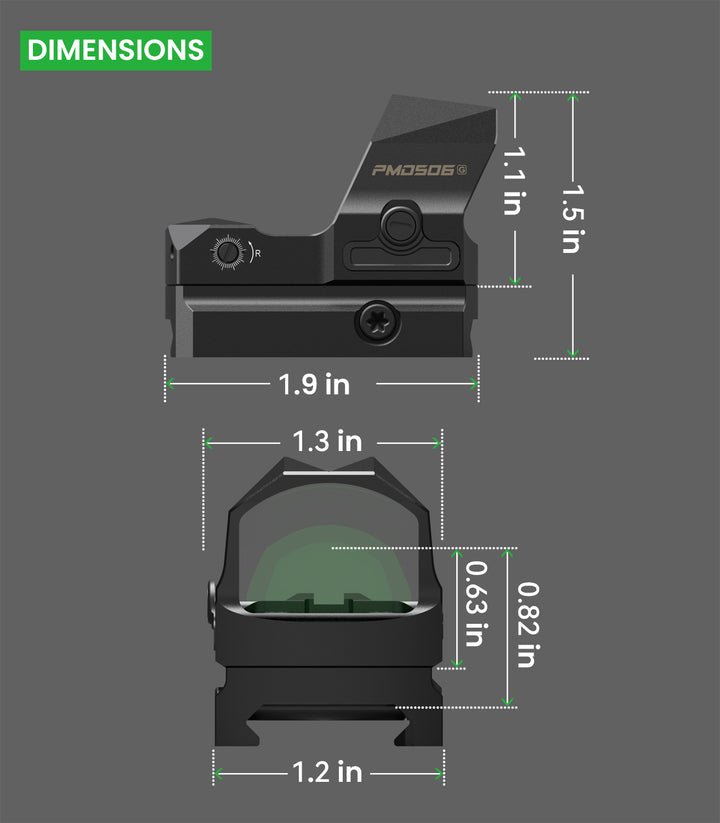

PHYSICAL SPECS
| Window Size | 0.94x0.68in (24x17.4mm) |
| Dimension (in) | 1.92x1.23x1.52inch/48.8*31.4*38.7mm(with Mount) 1.92x1.23x1.11inch/48.8*31.4*28.2mm(without Mount) |
| Weight (oz) | 66.2g/2.33oz(with Mount) 37g/1.3oz(without Mount) |
MECHANICAL SPECS
| Housing Material | 6061 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA/Click @ 100yds |
| W&E Travel Range |
±45 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | 1 Meter/ IPX7 |
| Vibration | 1500G |

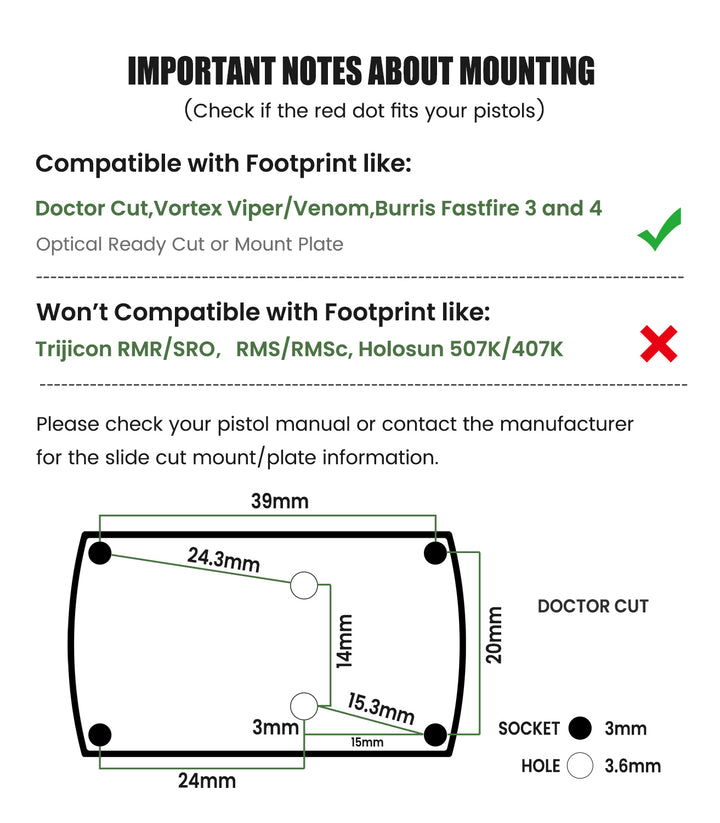

IMPORTANT NOTES
The PMD506 is compatible with footprint like:
Doctor Cut, Vortex Viper/Venom, Burris Fastfire 3 and 4
NOT compatible with footprint like: RMR/SRO, RMS/RMSc, Holosun 507K/407K. If you don't know what slide cut your pistol comes with, please contact the handgun manufacturers. Or an Doctor Cut Adapter Plate Needed.
