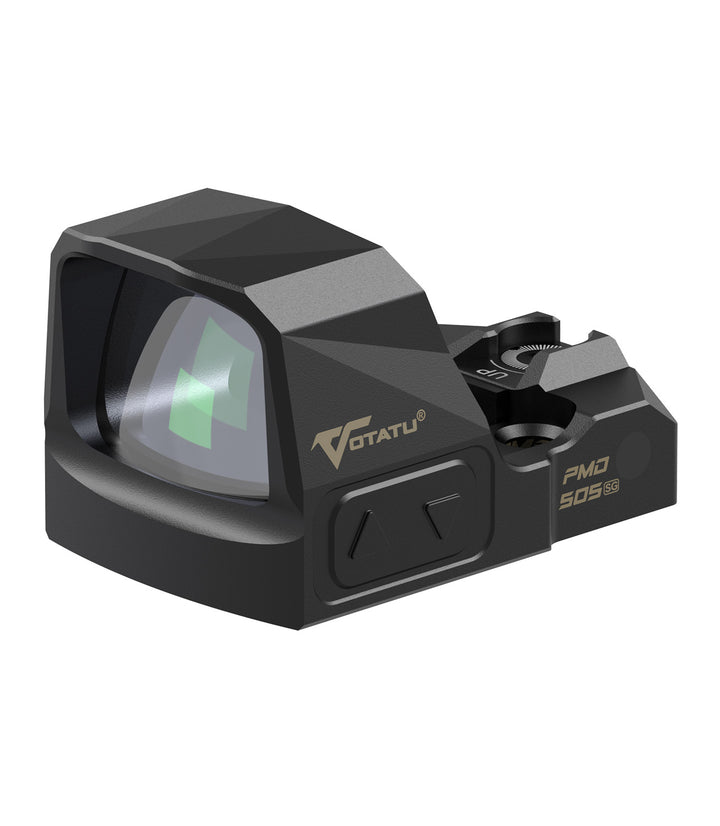

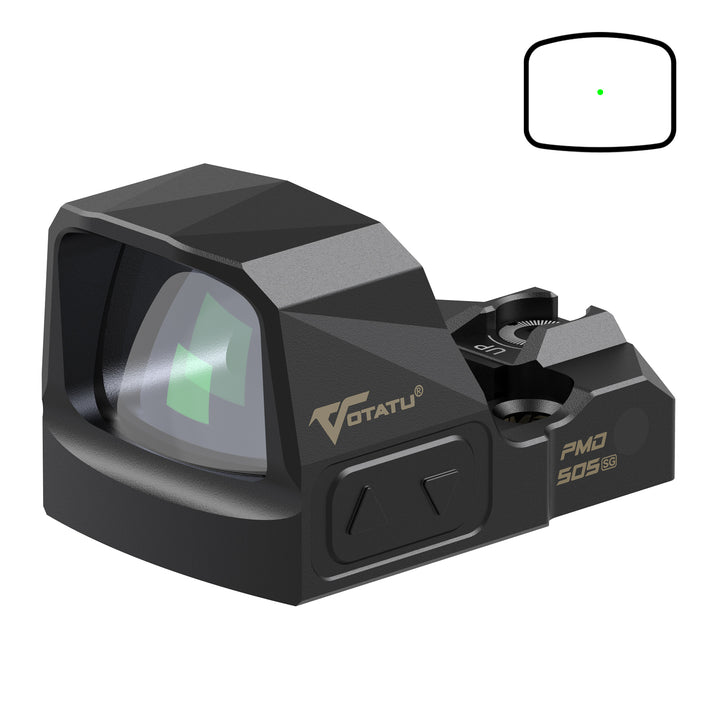

Votatu PMD505-SG 3MOA Micro Single Dot Sight Compatible with RMS/RMSc Slide Cout
Frequently Bought Together
Description
FEATURES

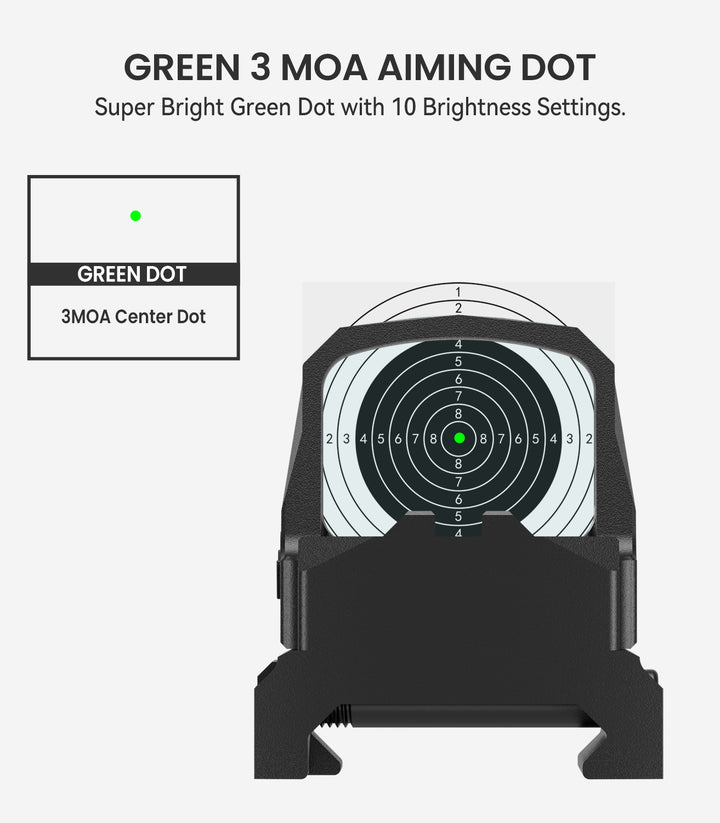

- 3MOA Green Dot Sight: The VOTATU PMD505-SG is a open reflex sight for RMS/RMSc footprint cut pistols and picatinny rail-mount. Featuring a GREEN 3 MOA aiming dot with a 21mm window for quick acquisition.
- 10 Illumination Settings: 10 bright settings, fully multi-coated lens that increase light transmission and clarity in any environment.
- Shake Awake : After about 225 seconds without sensing any motion, the sight will enter into sleep mode. Even the slightest movement will wake it up to the previous brightness setting.
- Convenient Tray Battery Compartment：The readily available CR1632 battery is side-loading, allowing for quick battery replacement without having to remove the sight from the firearm. No more Re-zeroing.
- Built To Last : This Red Dot Sight housed in durable yet lightweight aircraft-grade aluminum for use in any environment. IPX7 waterproof, fogproof and shockproof construction.
OPTICAL SPECS
| Reticle | 3 MOA Dot |
| Reticle Color | Green |
| Parallax Range | ≤2moa |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR1632 |
| Battery Life (Hours) | 50000 |
| Brightness Setting | 8 DL & 2 NV |
PHYSICAL SPECS
| Window Size | 0.83x0.65in (21x16.4mm) |

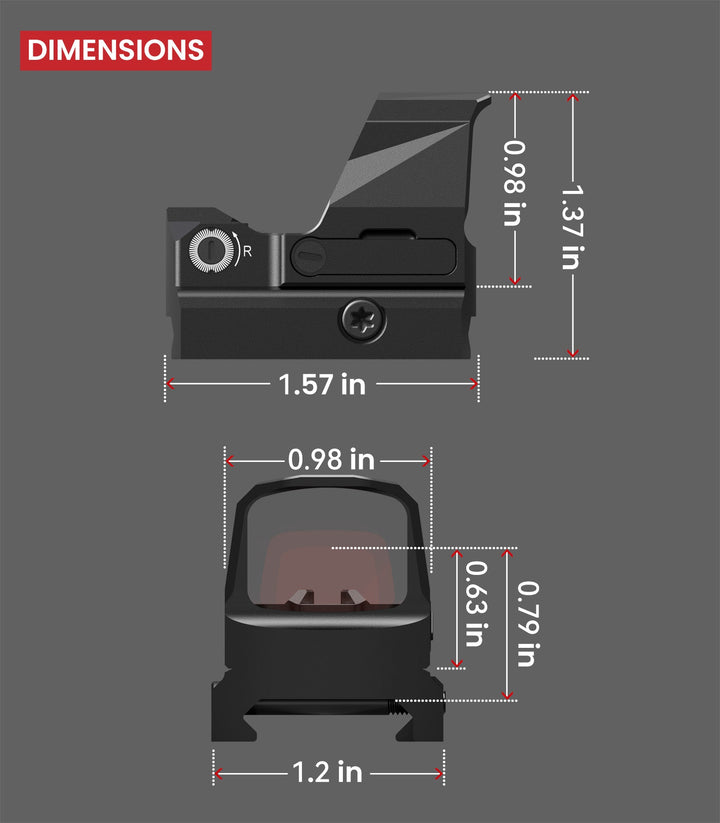

| Dimension (in) | 1.57x1.2x1.37 (with Mount) 1.57x1x0.98inch(without Mount) |
| Weight (oz) | 52.5g/1.85oz(with Mount) 29.5g/1.04oz(without Mount) |
MECHANICAL SPECS
| Housing Material | 7075 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 1 MOA/Click @ 100yds |
| W&E Travel Range |
±45 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | 1 Meter/ IPX7 |
| Vibration | 1500G |

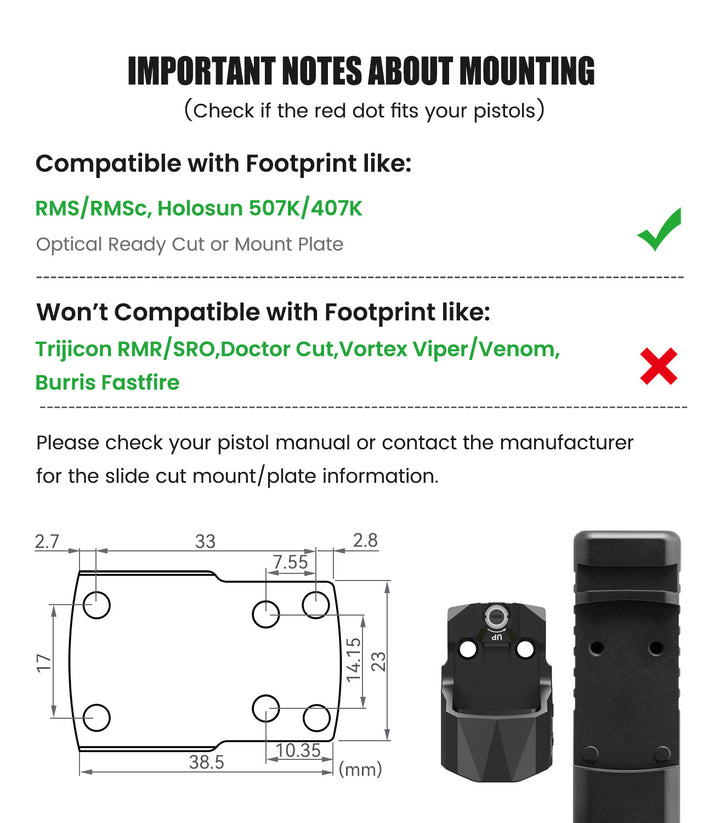

IMPORTANT NOTES
The PMD505 is compatible with RMS/RMSc cut footprint
NOT compatible with footprint like: RMR,Doctor Cut, Vortex Viper / Venom, Burris Fastfire. If you don't know what slide cut your pistol comes with, please contact the handgun manufacturers. Or an RMSc/RMS Adapter Plate Needed.
