VOTATU PMD506-R Multiple Reticle Red Dot Sight for Doctor Footprint, Shake Awake 2 MOA Dot 64 MOA Circle
FEATURES LED Multiple Reticle System: PMD506-R red dot sight featuring three reticle options ( the classic 2 MOA dot, the 64 MOA circle and their combination circle-dot reticle )...
Frequently Bought Together
Description
FEATURES
-

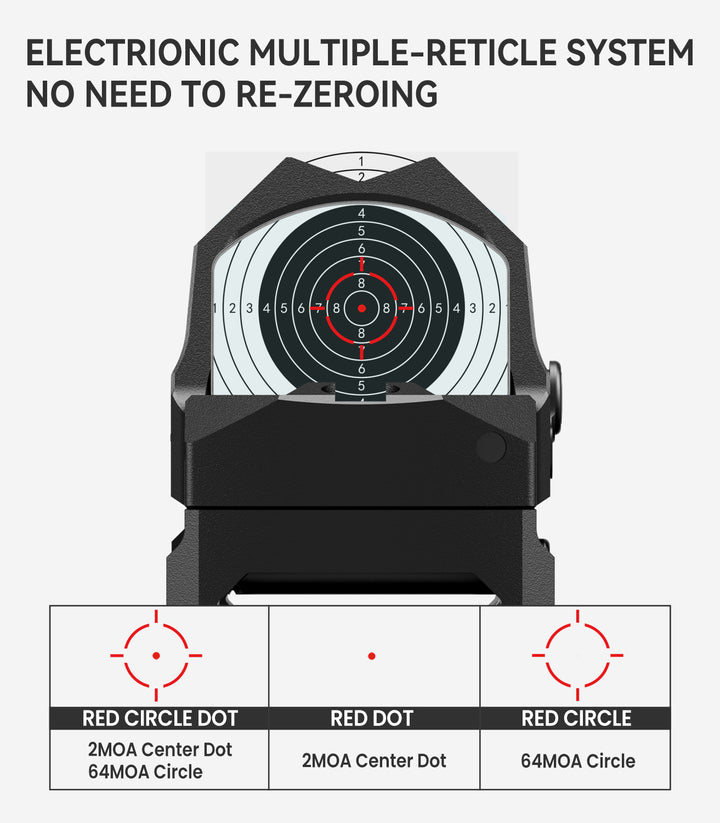

LED Multiple Reticle System: PMD506-R red dot sight featuring three reticle options ( the classic 2 MOA dot, the 64 MOA circle and their combination circle-dot reticle ) that allows for fast target acquisition. LED projects both reticles, so no re-zeroing is necessary.
- 10 Illumination Settings: This optic operate in all light levels with 8 illumination settings for daylight and 2 for N-V. 24MM large window with fully multi-coated lens to eliminate glare and provide a high level of performance in low light.

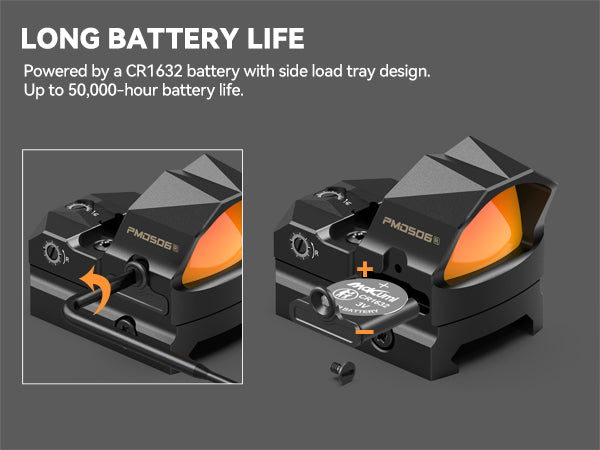

- Shake Awake : After about 225 seconds without sensing any motion, the sight will enter into sleep mode. Even the slightest movement will wake it up to the previous brightness setting. Also offers side load battery system, no need to remove the sight to change the Battery.
- Built To Last : The PMD506-R Micro Red Dot Sight housed in durable yet lightweight aircraft-grade aluminum for use in any environment. IPX7 waterproof, fogproof and shockproof construction.
- Fits pistols with doctor cut footprint or picatinny rail (picatinny mount included), If you do not know what slide cut/mounting plate your pistol has, please check pistol manual or contact the manufacturer. **The PMD506-R does NOT fit RMR, RMS/RMSc type footprints.
- Any mount that is compatible with the Vortex Viper/Venom, Burris Fastfire 3 and 4 red dots will work with PMD506-R as they share the same footprint.
OPTICAL SPECS
Reticle | 2 MOA Dot and 64 MOA Circle, 2 MOA Dot Only, 64 Circle Only |
Reticle Color | Red |
Parallax Range | ≤2moa |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
ELECTRONIC SPECS
Power Source | Battery |
Battery Type | CR1632 |
Battery Life (Hours) | 50000 |
Brightness Setting | 8 DL & 2 NV |
PHYSICAL SPECS
Window Size | 0.94x0.68in (24x17.4mm) |
Dimension (in) | 1.92x1.23x1.52inch/48.8*31.4*38.7mm(with Mount) 1.92x1.23x1.11inch/48.8*31.4*28.2mm(without Mount) |
Weight (oz) | 66.2g/2.33oz(with Mount) 37g/1.3oz(without Mount) |
MECHANICAL SPECS
Housing Material | 6061 Aluminum |
Surface Finish | Anodize |
Adjustment per Click | 1 MOA/Click @ 100yds |
W&E Travel Range |
±45 MOA |
ENVIRONMENT SPECS
Storage Temperature | -40℃~70℃ |
Working Temperature | -30℃~60℃ |
Submersion | 1 Meter/ IPX7 |
Vibration | 1500G |
IMPORTANT NOTES

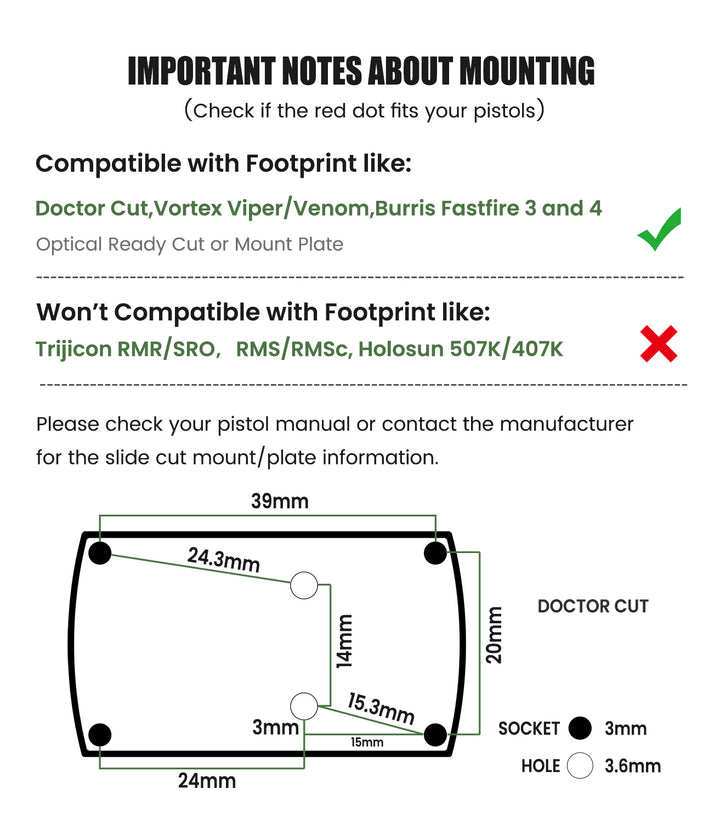

The PMD506 is compatible with footprint like:
Doctor Cut, Vortex Viper/Venom, Burris Fastfire 3 and 4
NOT compatible with footprint like: RMR/SRO, RMS/RMSc, Holosun 507K/407K. If you don't know what slide cut your pistol comes with, please contact the handgun manufacturers. Or an Doctor Cut Adapter Plate Needed.
